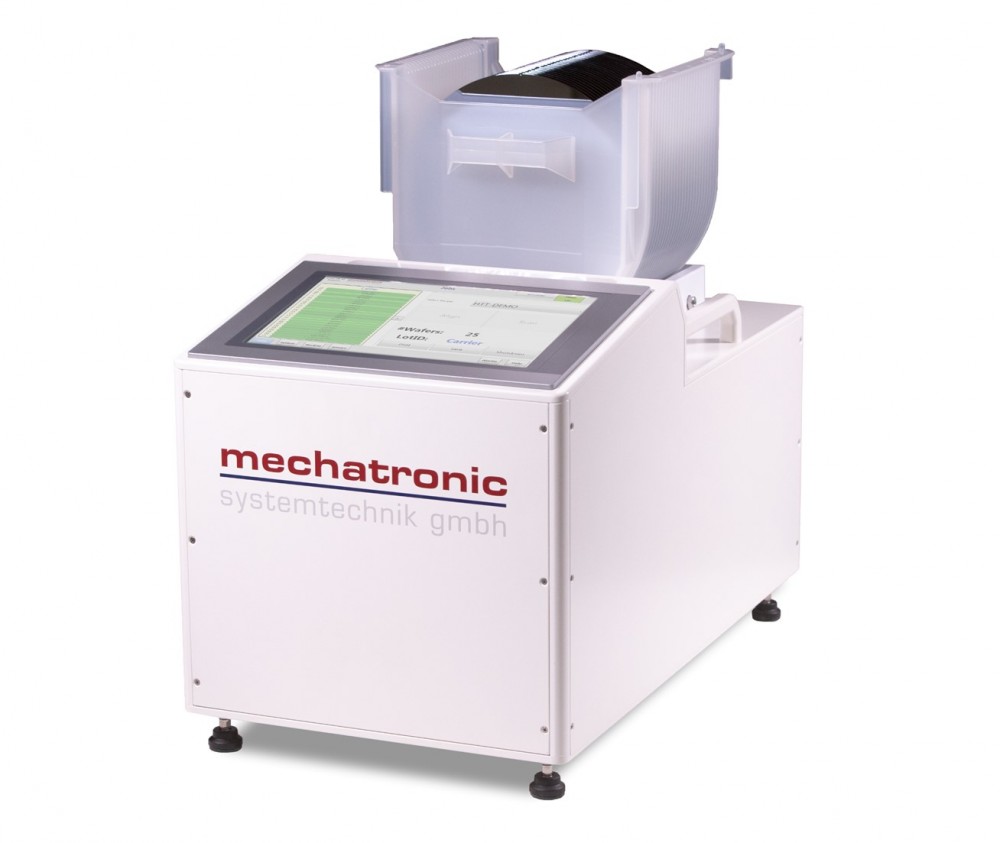

Batch Wafer Reader

Technical Specifications

Wafer Compatibility: 200mm (8") Wafers

Wafer Thickness: >350um to 1100um

Cassette Capacity: 25 Slots

Integrated Reader: IOSS WID120 (Decodes OCR, Barcode, DataMatrix, QR Code)

Scan Field Size: 35mm x 13mm (Ultra-wide)

Display: 10.1" Touchscreen Monitor

Interfaces: 2x USB 2.0, 2x Ethernet (RJ45), RS-232

Options: RFID Reader, SECS/GEM Interface, Ionizer (ESD), Software Customization

Weight: Approx. 20kg (Portable tabletop design)

Dimensions: 300mm x 528mm x 305mm

Power Supply: 100-240 VAC / 50-60Hz

Certifications: CE, FCC, ISO Class 3

Product overview


The Mechatronic mBWR200 represents the next generation of advanced Batch Wafer Reader systems, specifically engineered for high-efficiency wafer tracking and handling. This compact tabletop tool enables fully automated notch-alignment and ID reading of 200mm (8") wafers directly within a 25-slot cassette.Powered by the high-end IOSS WID120 reader, the mBWR200 provides a "single-button" process that eliminates the need to remove wafers from the cassette, significantly reducing the risk of contamination or damage. Whether used as a standalone tool or integrated into existing production lines via SECS/GEM, it is the ideal solution for modern semiconductor manufacturing environments.


Key Features


Lightning-Fast Cycle Times: Completes a full process (alignment and ID reading) of 25 wafers in approximately 35 seconds.

Dual Reading Capability: Supports both front-side and back-side code recognition without manual intervention.

Integrated Precision: Equipped with the industry-leading IOSS WID120 Wafer ID Reader for superior decoding accuracy.

Intelligent Mapping: Features a mapping sensor to detect wafer presence, cross-slots, or double-slots before processing.

Advanced Alignment: Provides automatic notch-alignment of all wafers inside the cassette for uniform positioning.

User-Friendly Interface: Operated via an intuitive 10.1" touchscreen with a SEMI standard Graphical User Interface (GUI).

Cleanroom Certified: Designed for high-purity environments, certified to ISO Class 3 (formerly FS209E Class 1).
